How to replace glass cooking top (1)
Resolution
Always refer to the safety information in your product's user manual before carrying out any repair or maintenance work. https://www.electrolux.com/support/user-manuals/
WARNING! RISK OF ELECTRIC SHOCK
Before any repair or maintenance operation, deactivate the appliance and disconnect the mains plug from the socket.
WARNING! RISK OF INJURY
Always take care when moving appliances. For heavy appliances it's safest for two persons to move it. Always use safety gloves and safety footwear. Wear safety gloves at all times to protect from cuts from sharp edges.
WARNING! RISK OF EYE INJURY
Wear safety glasses if you perform maintenance or repair work involving springs.
WARNING! RISK OF BURNS
Before any repair or maintenance operation make sure the appliance is not hot.
WARNING! CHOKING HAZARD
Small parts not for children under 3 years. Keep all small parts and packaging out of reach of children.
Only adults should use or install the product.
Make sure to use the product only for its designated purpose and verify that it is a compatible part for the intended product.
Do not use or install the product if damaged.
Please note that self-repair or nonprofessional repair can have safety consequences if not done properly and might void the warranty. Possessing the necessary know-how is essential.
How to replace glass cooking top
Unlocking tool 140067355010 is required for this repair. The underside of the hob may scratch the surface it’s on, it is advised to place a towel on the working surface to avoid scratches.

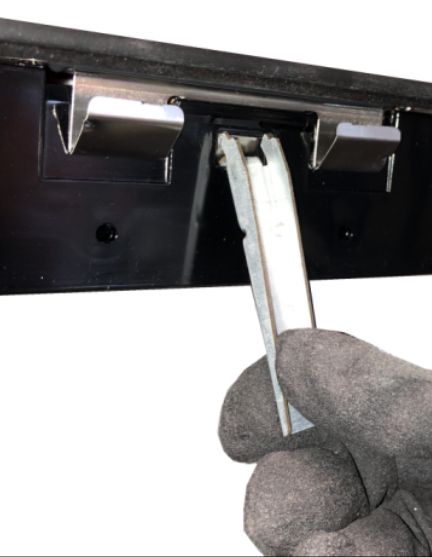

1. Push the tool up into the slot on the hob to release the side clips of the hob glass.
2. Using the tool, unclip the glass in all positions on the hob glass. The number and placement of clips may vary depending on the appliance.

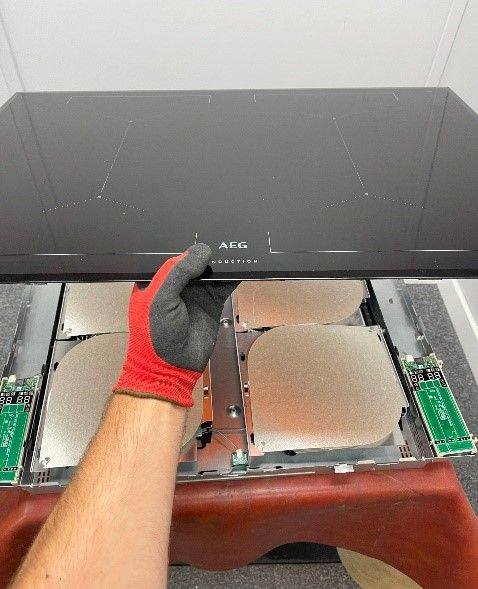

3. Lift the glass from the hob.

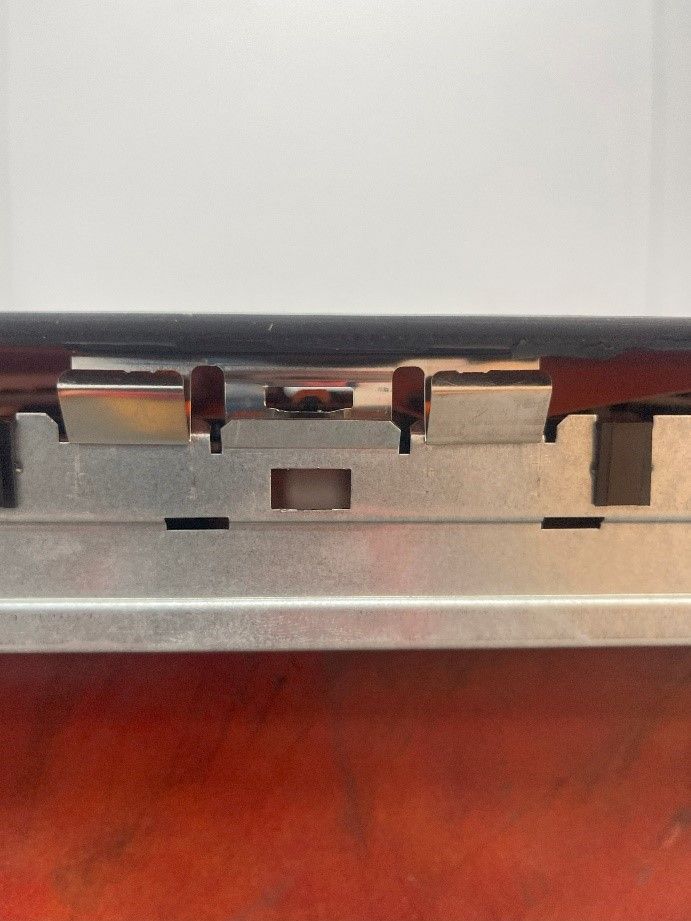

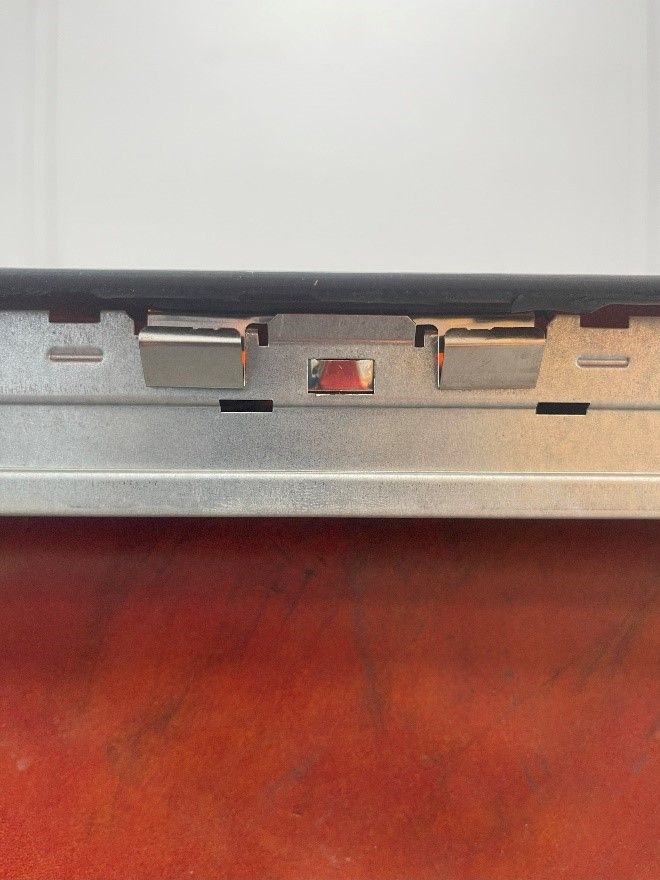

4. Carefully position the new hob glass onto the frame, making sure to align all the clips properly (make certain each clip is correctly placed with the tension spring on the exterior of the body and the clip on the interior).
5. Press down hard on all sides of the hob to make sure the clips are snapped in.
