Quick Guide to Electrolux air-to-air heat pump remote control
Resolution

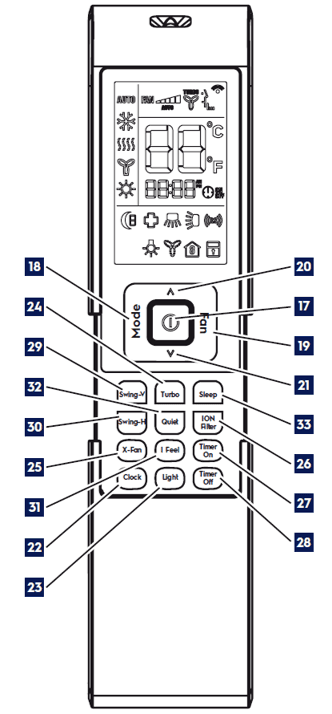

Quick Guide to Electrolux air-to-air heat pump remote control:
ON OFF
17 To turn on the unit, turn the remote control towards the heat pump's receiver window while pressing “ON”.
To switch off, press the same button "OFF".
OPTION SELECTION
18 Press MODE to set the operating mode: AUTO
COOL DRY FAN HEAT.
Default setting: AUTO.
FAN SPEED
19 Press FAN to select fan speed:
AUTO LOW (Low)
MEDIUM LOW MEDIUM (Medium) MEDIUM HIGH (Medium High) HIGH
Default setting: AUTO. In DRY mode, only LOW can be set.
TEMPERATURE SETTING
20 - 21 To regulate the temperature. The temperature can be adjusted from 16-30 ° C.
8 ° C HEAT FUNCTION
26 + 22 In HEAT mode, press button 26 and 22 CLOCK simultaneously to turn the 8 ° C heating function on or off.
The display shows “8 ° C”.
The unit starts to warm up when the temperature drops below 8 ° C.
The fan speed will be AUTO and cannot be changed.
AIR FLOW ADJUSTMENT
29 Vertical - Activating or deactivating the vertical swing function.
30 Horizontal - Activate or deactivate the horizontal swing function.
TURBO OPERATION
24 Activating or deactivating the TURBO function in COOL mode or HEAT mode.
If the TURBO function is activated, the turbo symbol will be displayed.
Default setting: OFF.
If the TURBO function is activated, the unit will operate at TURBO speed to cool or heat quickly so that the ambient temperature approaches the set temperature as soon as possible.
ION-FILTER
26 Activating or deactivating the operation of the health filter.
QUIET (QUIET)
32 Activating or deactivating the QUIET (Silent) function.
If the QUIET (Silent) function is activated, the indoor fan is operated at an extremely low speed, so the suspension is low.
TIMER ON / OFF
27 Activating the TIMER function.
20 - 21 If the TIMER ON symbol flashes, press the No. 20 and 21 buttons to set the time.
28 Turn TIMER off.
LIGHT
23 Switch the display on or off.
X-FAN
25 Activating the X-FAN function. After this the fan will continue to operate for 2 minutes after the unit has been switched off.
This feature prevents any condensation on the inside unit's cool parts.
IN FEEL
31 Activating or deactivating the I FEEL function. The remote control will automatically transmit the ambient temperature to the main unit every 10 minutes.
